Heat and Power Inc.
Glycerin Filled Pressure Gauge, 2 1/2" Dial Size, 0-160 PSI/kPa
Glycerin Filled Pressure Gauge, 2 1/2" Dial Size, 0-160 PSI/kPa
Regular price
$13.91 USD
Regular price
$0.00 USD
Sale price
$13.91 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Features
- Glycerin filled pressure gauges provide vibration and shock resistance.
- Stainless steel case resists corrosion and weathering.
- For gaseous or liquid media that will not obstruct the pressure system.
- Measure pressure with dual scale psi/kpa, easy reading to ensure the system is operating in a safe range.
- Apply to hydraulics and compressors.
Product Description
Liquid Filled Pressure Gauge
Liquid Filled Pressure Gauge meets the international industry standard EN 837-1.
Why choose a liquid filled pressure gauge?
Pointer FlutterLiquid fills can reduce the pointer flutter to make sure the correct reading. |
Damages to the MechanicsLiquid fills can protect the damages to the mechanics, prolonging service life. |
Fogging of the WindowsLiquid fills can protect the window from fogging if the weather is too cold, to ensure the reading. |
FAQ:
InstallDo not install the pressure gauge by hand, install with open-ended spanner. |
Liquid LevelLiquid filled gauge is not intended to be 100% full of liquid, When held vertical, the level can appear to be between 3/4 and 7/8 full. |
Suitable RangeThe operating pressure should be 3/4 of full-scale value. |
Specifications:

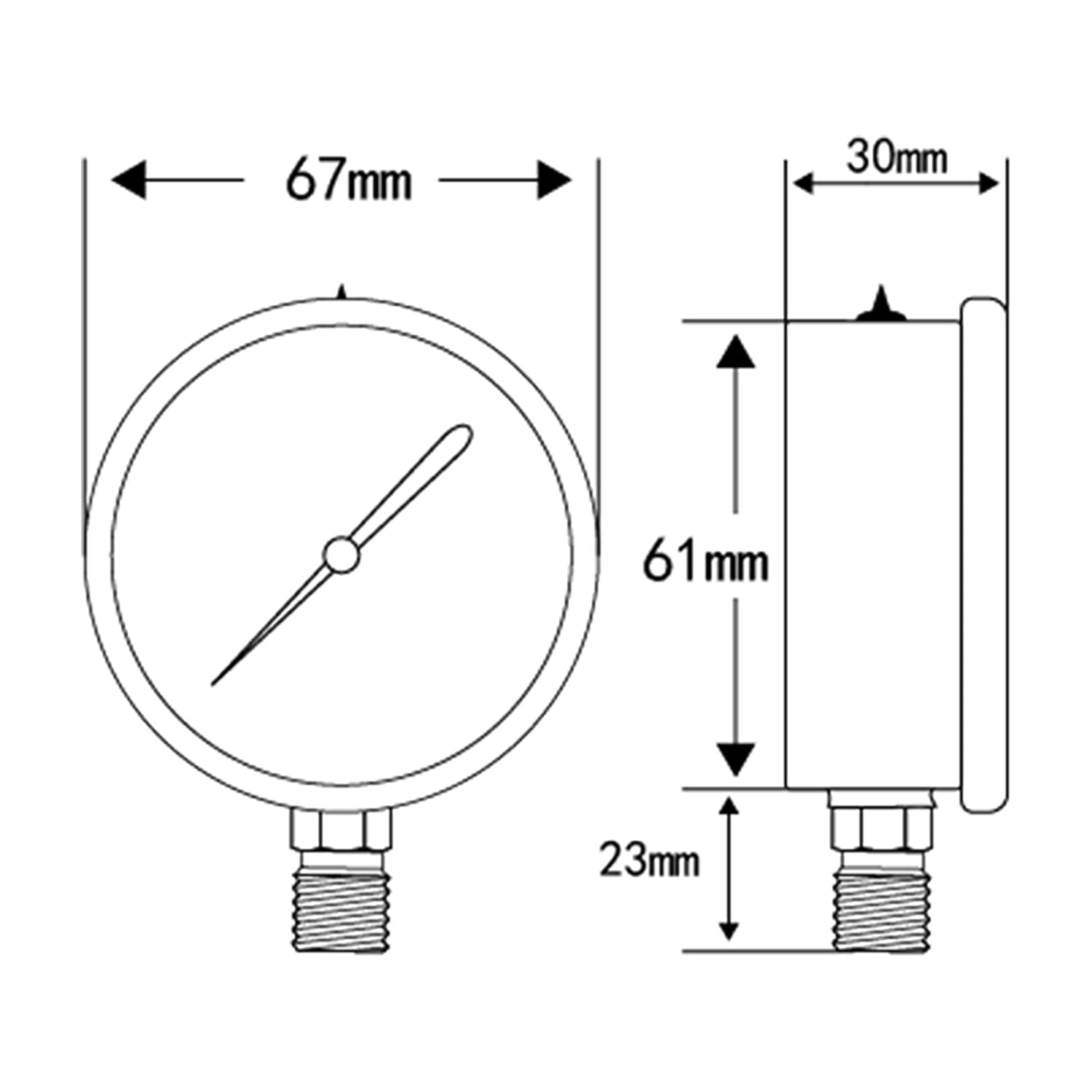

Gauge Diameter: | 2-1/2" |
Mount: | Lower |

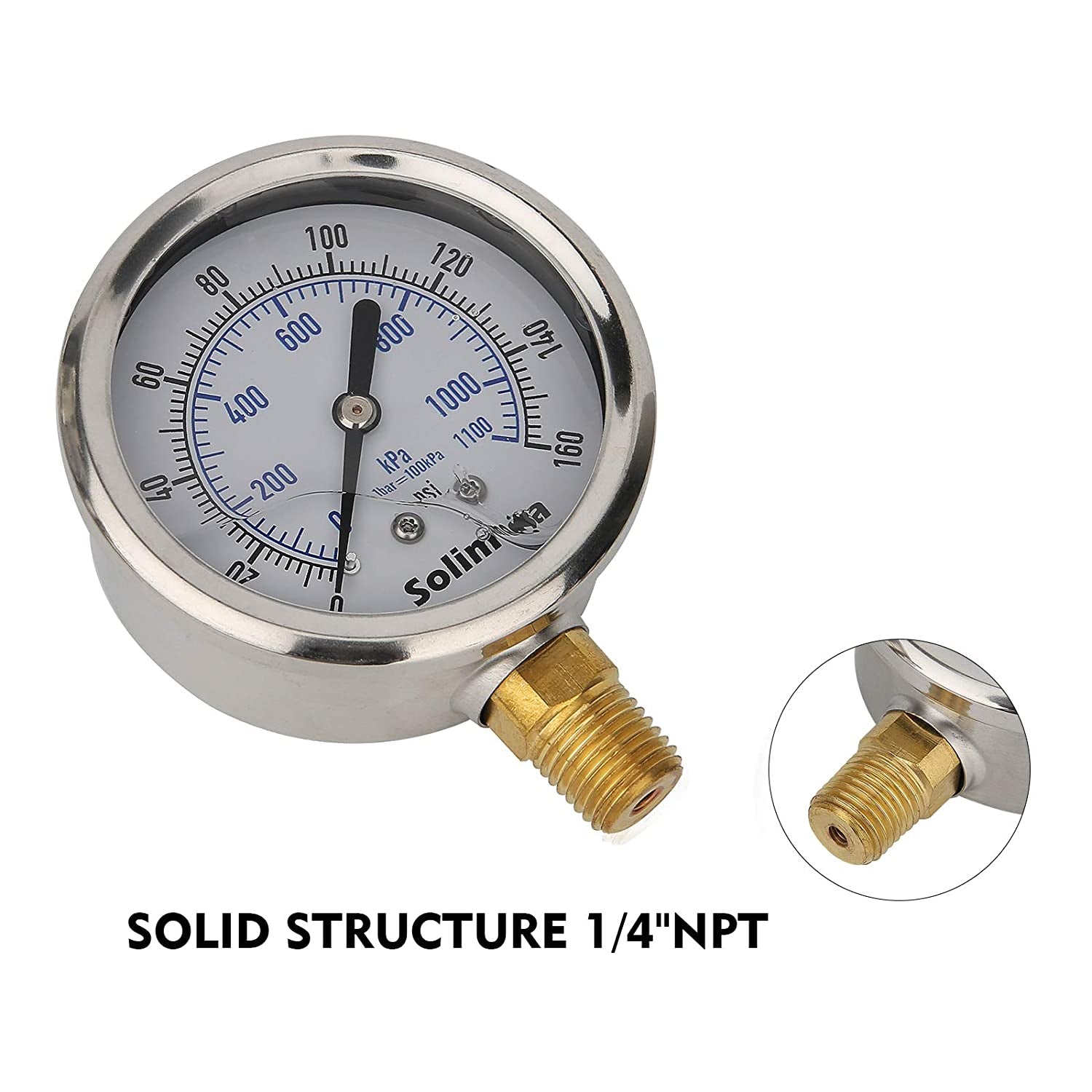

Thread Size: | 1/4"NPT |
Range: | 0-160 psi |
Accuracy: | 3-2-3% |
Liquid: | Glycerin |
Case: | Stainless Steel |
Bourdon Tube: | Copper |
Window: | Polycarbonate |
Ambient Temp: | -4°F+140°F(-20°C+60°C) |
Range | 0-160 psi/kpa | 0-30 psi/kpa | 0-100 psi/kpa | 0-200 psi/kpa | 0-60 psi/kpa | 0-300 psi/kpa |
---|
