Heat and Power Inc.

2" Filter Pressure Gauge, 1/4" NPT Lower Mount, 0-60 PSI / Bar

2" Filter Pressure Gauge, 1/4" NPT Lower Mount, 0-60 PSI / Bar

Regular price $13.99 USD
Regular price $0.00 USD Sale price $13.99 USD
Sale Sold out
Shipping calculated at checkout.
Size

Product Features

  • For pressure measuring on the filter of swimming pools, spas, aquariums, etc...
  • 2" dial size, 1/4"NPT lower mount
  • Pressure range: 0-60 psi/bar, 100xkpa double scale
  • Plastic case, twist to move bezel, start and clean filter, brass wetted parts, dry
  • Accuracy: +/-3-2-3%

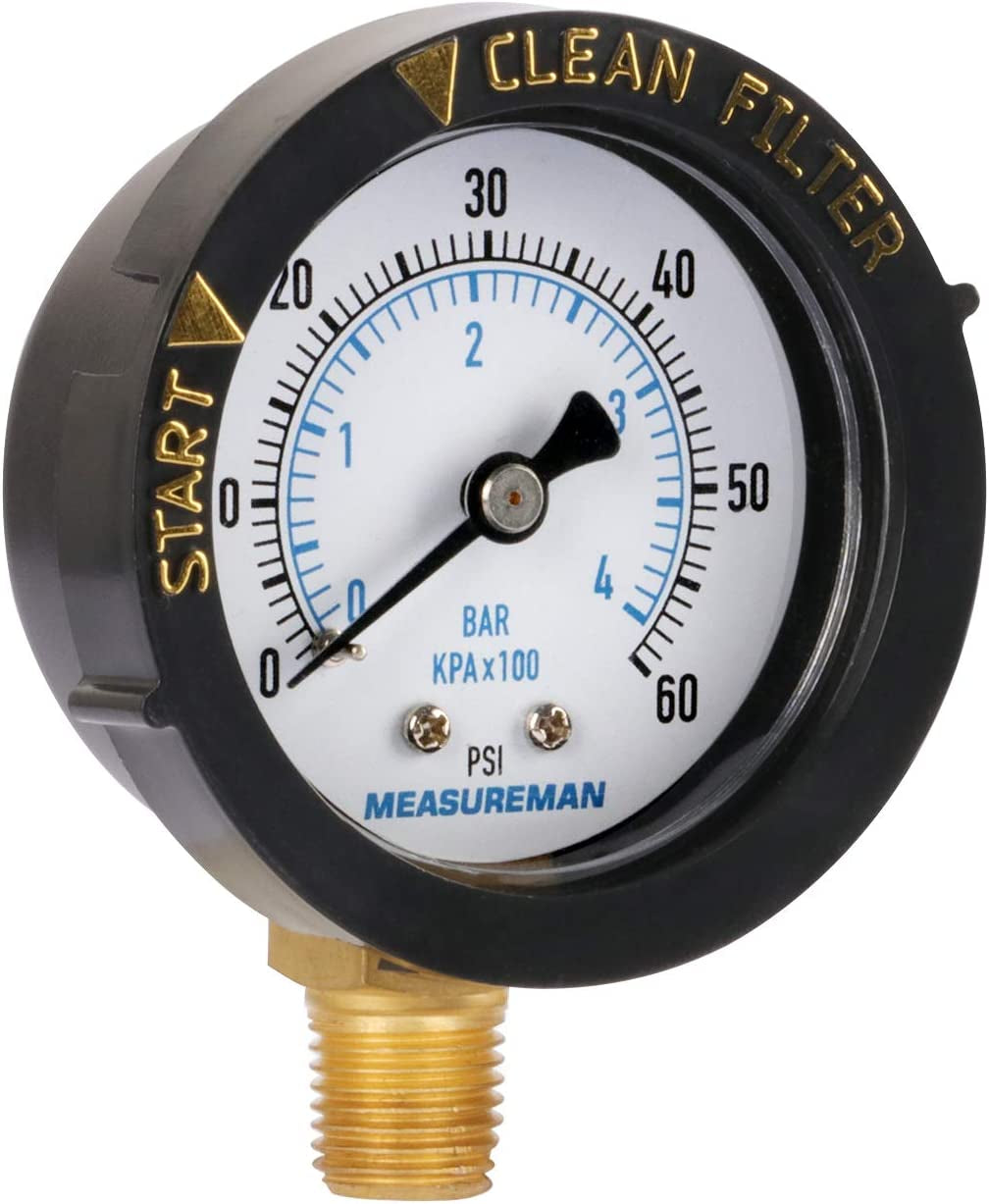

Start and Clean Filter Pressure Gauge

Swimming Pool Filter Pressure Gauge

This pressure gauge is designed for water pressure measuring on the filter for swimming pool, spa, aquarium etc

Plastic case, twist to move bezel, start and clean filter, brass wetted parts, dry

  • 2" dial size, 1/4"NPT lower mount
  • 0-60psi/bar 100xkpa double scale
  • Accuracy,+/-3-2-3%

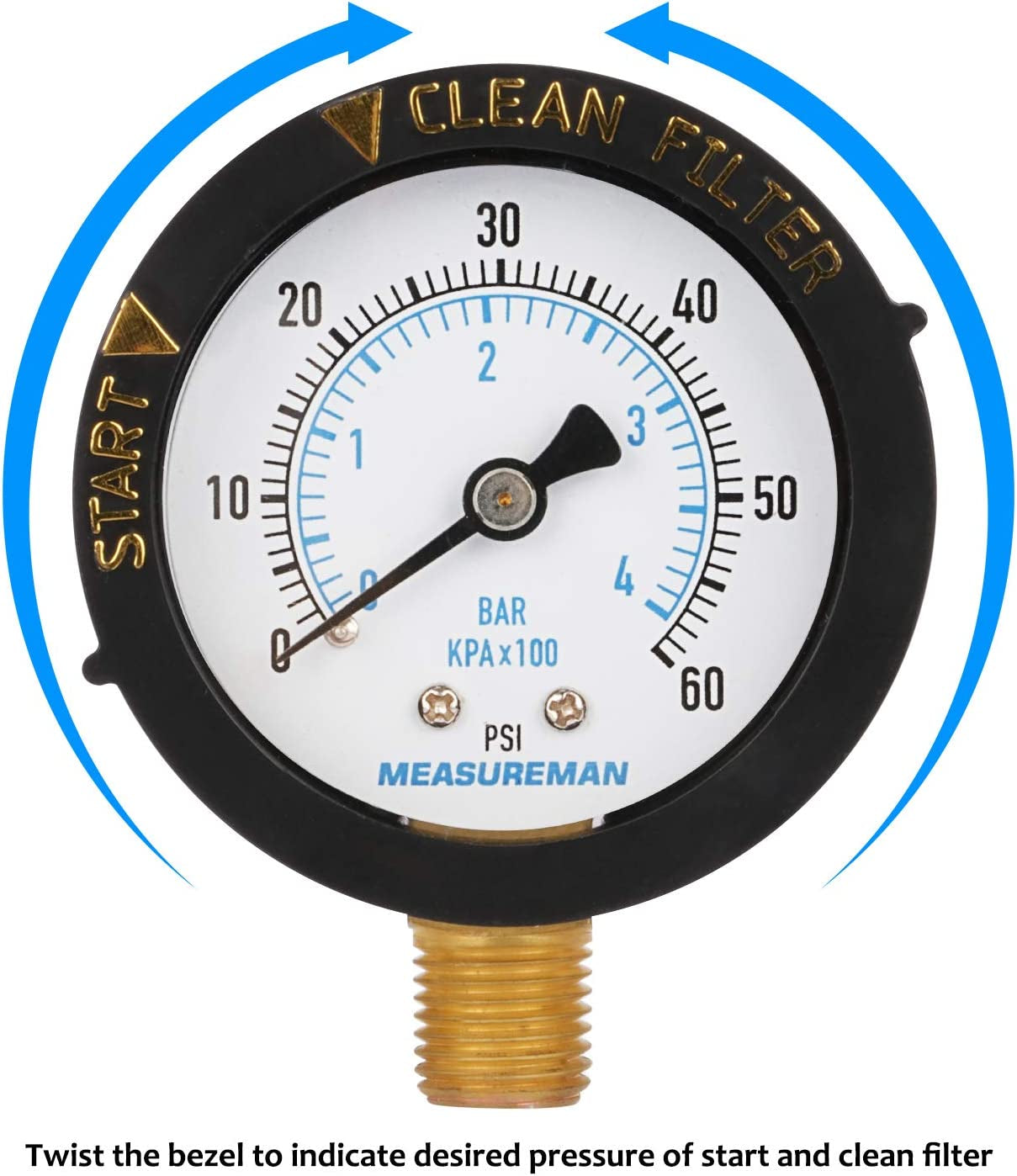

Start and Clean Filter

Twist the bezel to indicate desired pressure of start and clean filter.

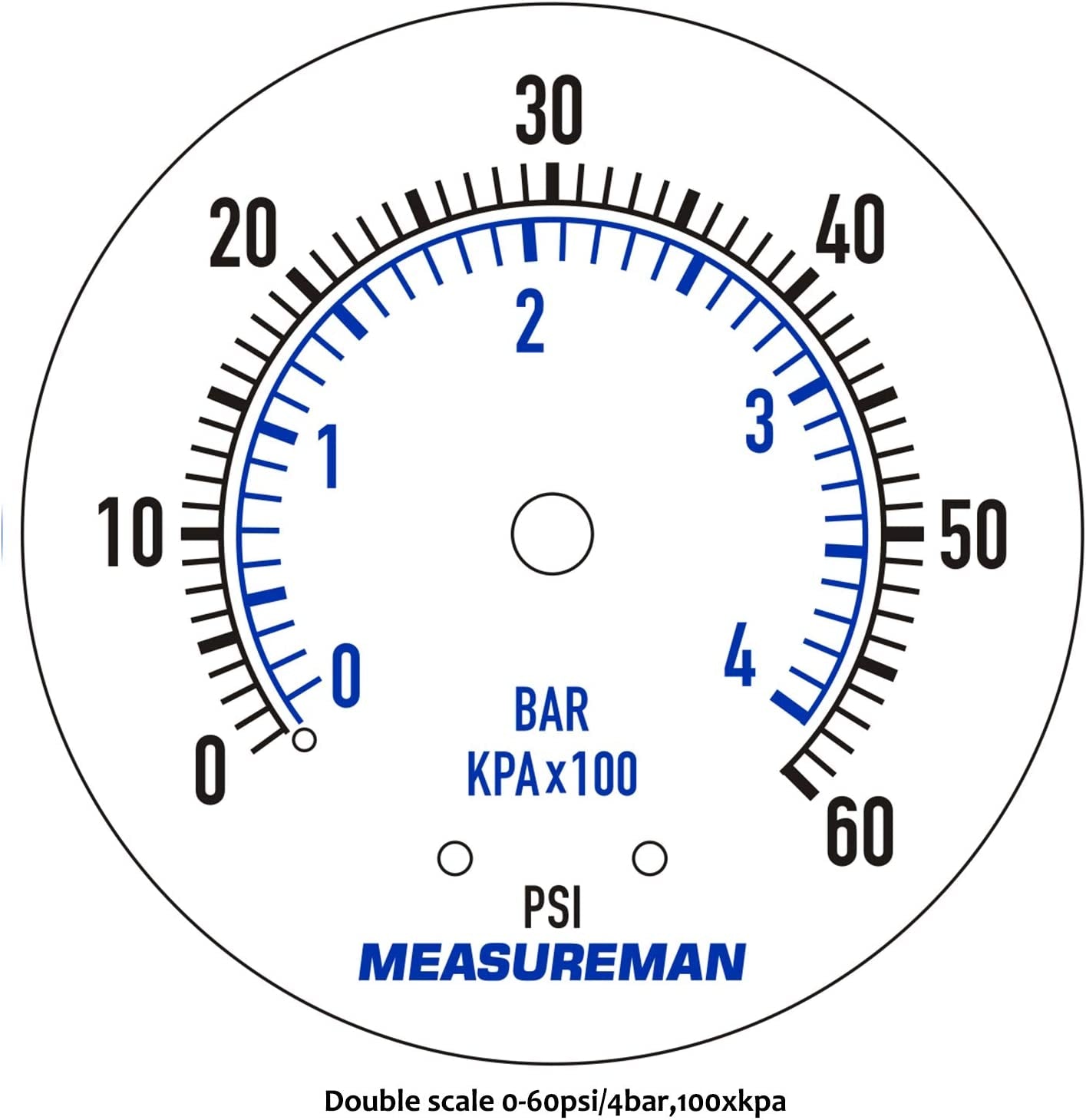

Easy to Read Clearly

Clear dial,Clear plastic,0-60psi/bar 100xkpa double scale for you to read clearly.

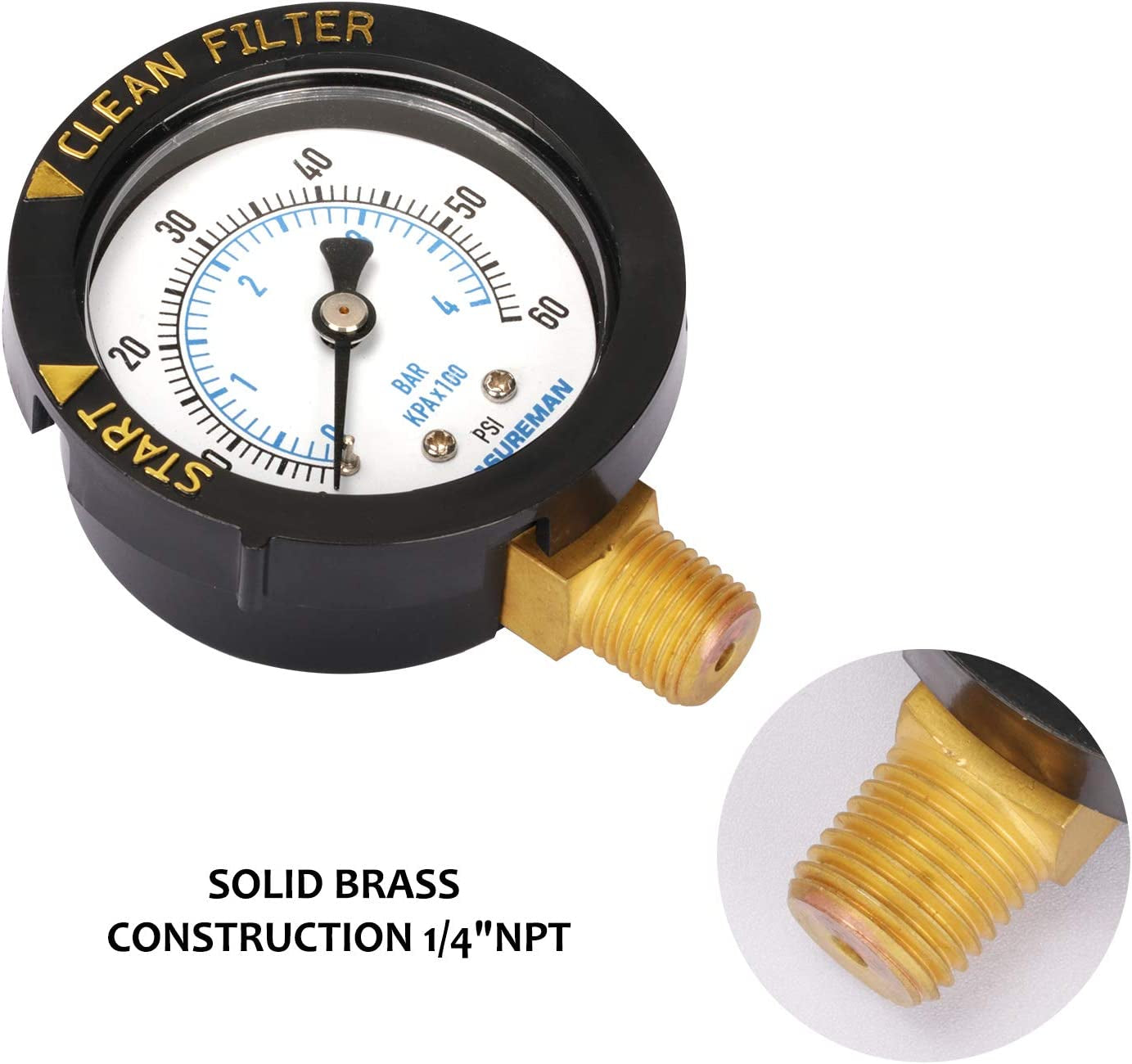

Brass Thread Adaptor

Solid brass construction 1/4"NPT lower mount, good wear resistance and corrosion resistance.

Specifications

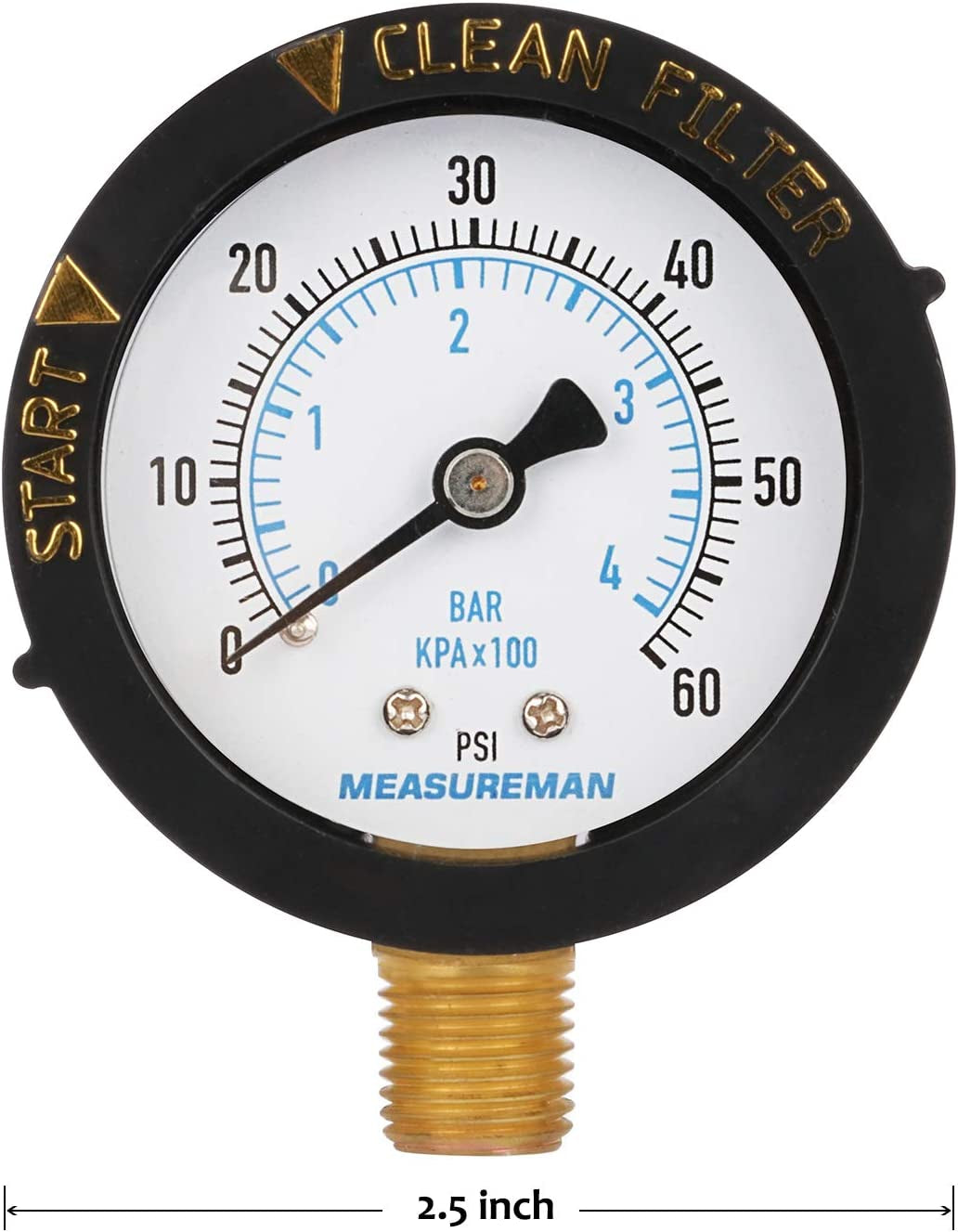

Dial size: 2"
Process Connection: 1/4"NPT lower mount male
Case: plastic case and bezel, start and clean filter
Window: Clear plastic
Dial plate: aluminum, with pointer stop
Pointer: Aluminum, black, DIN style
Bourdon tube: Copper alloy
Movement: Brass
Connection: Brass
IP class: IP43
Accuracy: +/-3-2-3%
Pressure range: 0-60psi/bar, 100 x kpa
Working temperature: -4 to 140 deg F/-20 to 60 deg C
Ambient temperature: 140 deg F/60 deg C maximum
